IREGE IR-AMP240 asphalt mixing plant
ROAD EQUIPMENT — STATIONARY PLANT

ASPHALT MIXING PLANT

120-400 t/h stationary batch asphalt mixing plants built for continuous highway-grade production, with multi-fuel firing, sub-20 mg emission control and full SCADA automation.

REQUEST QUOTE VIEW SPECIFICATIONS
240
t/h CAPACITY
4000
kg / BATCH
≤20
mg/Nm³ EMISSION
480
kW POWER
OVERVIEW

CONTINUOUS
HIGHWAY-GRADE
PRODUCTION.

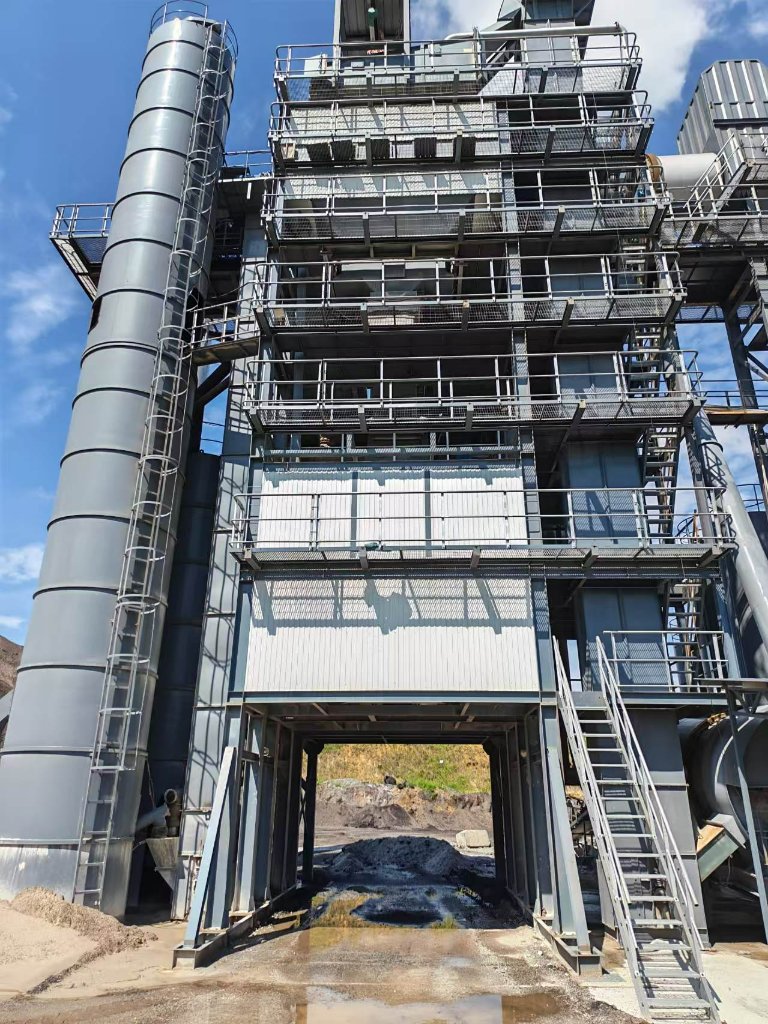

  • 01Integrated modular design, optimized dust-proof ensures eco-friendly standard. The whole plant is highly integrated which saves a lot of space, meanwhile the passageway for trucks is left widely for easy transportation.
  • 02Bitumen and hot oil pipes adopt quick-connection interface, which could decrease 20% installation time than normal design.

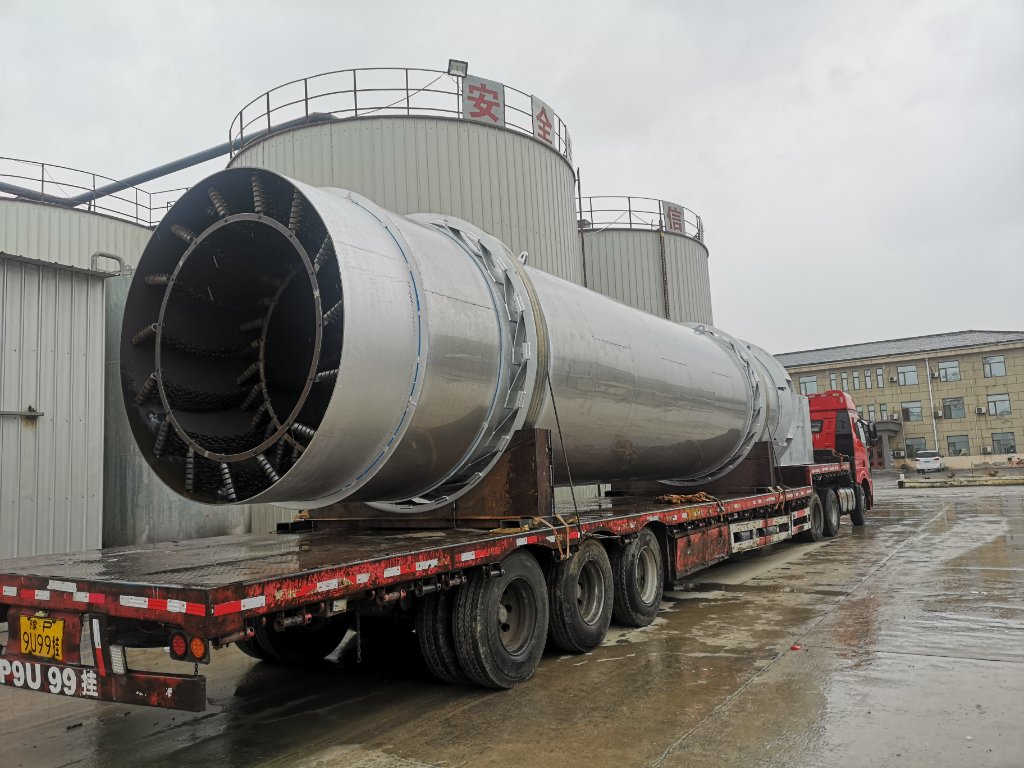

  • 03The liners in the drying drum use adjustable structure, which is good for even material curtain, the burners are suitable for different fuels.
  • 04Vibrating screen with long life span and less maintenance.
  • 05The mixing plates and liners are manufactured with nickel-chromium-molybdenum alloy material, the high strength and abrasion can fit for tough working conditions.
  • 06High stability and automatic control system promise durable and continuous production.
TECHNICAL SPECIFICATIONS

ENGINEERED DOWN TO THE FASTENER.

MODEL
DLB2000
DLB3000
DLB4000
DLB5000
CAPACITY UNDER STANDARD CONDITION (T/H)
160
240
320
400
COLD HOPPER
QUANTITY
Accordingly
Accordingly
Accordingly
Accordingly
VOLUME (M³)
10
12
16
16
DRYING SYSTEM
LENGTH AND DIAMETER (M)
9.1 / 2.2
9.5 / 2.5
11 / 2.7
11.1 / 2.9
POWER (KW)
4×15
4×18.5
4×22
4×30
FUEL TYPE
Diesel, heavy oil, gas
DUST COLLECTING SYSTEM
FILTER SPACE (M²)
690
889
1131
1300
DRAFT FAN POWER (KW)
110
160
200
220
MIXING TOWER
AGGREGATE ELEVATOR (T/H)
180
240
320
400
SCREEN DECKS
5
5
6
6
SIEVING SPACE (M²)
26
48
68
82
HOT AGGREGATE SPACE (T)
50
80
100
120
MIXER (T)
2
3
4
5
POWER (KW)
2×30
2×37
2×45
2×75
MAX CAPACITY (T/H)
160
240
320
400
FINISHED PRODUCT HOPPER (T)
40
100 / 2 hoppers
CONTROL SYSTEM
TYPE
Siemens PLC + industry computer, fully automatic control
KEY FEATURES

BUILT FOR CONTINUOUS DUTY.

High-Efficiency Drying Drum

Wear-resistant flights and optimized lift design reduce fuel consumption per ton by up to 12%.

Multi-Fuel Burner

Switch between diesel, heavy oil, natural gas and coal without hardware changes.

Low-Emission Bag House

Pulse-jet bag filter holds particulate emission below 20 mg/Nm³, compliant with EU and Chinese standards.

PLC + SCADA Control

Recipe management, remote diagnostics and full production data logging with one-touch start.

Modular Construction

Pre-assembled modules allow site installation and commissioning in under three weeks.

Insulated Hot Paths

Bitumen and hot aggregate lines are fully insulated for minimal heat loss in cold-climate operation.

APPLICATIONS

WHERE IT WORKS.

  • Highway & expressway construction
  • Municipal road networks
  • Airport runways & taxiways
  • Commercial asphalt supply & batching

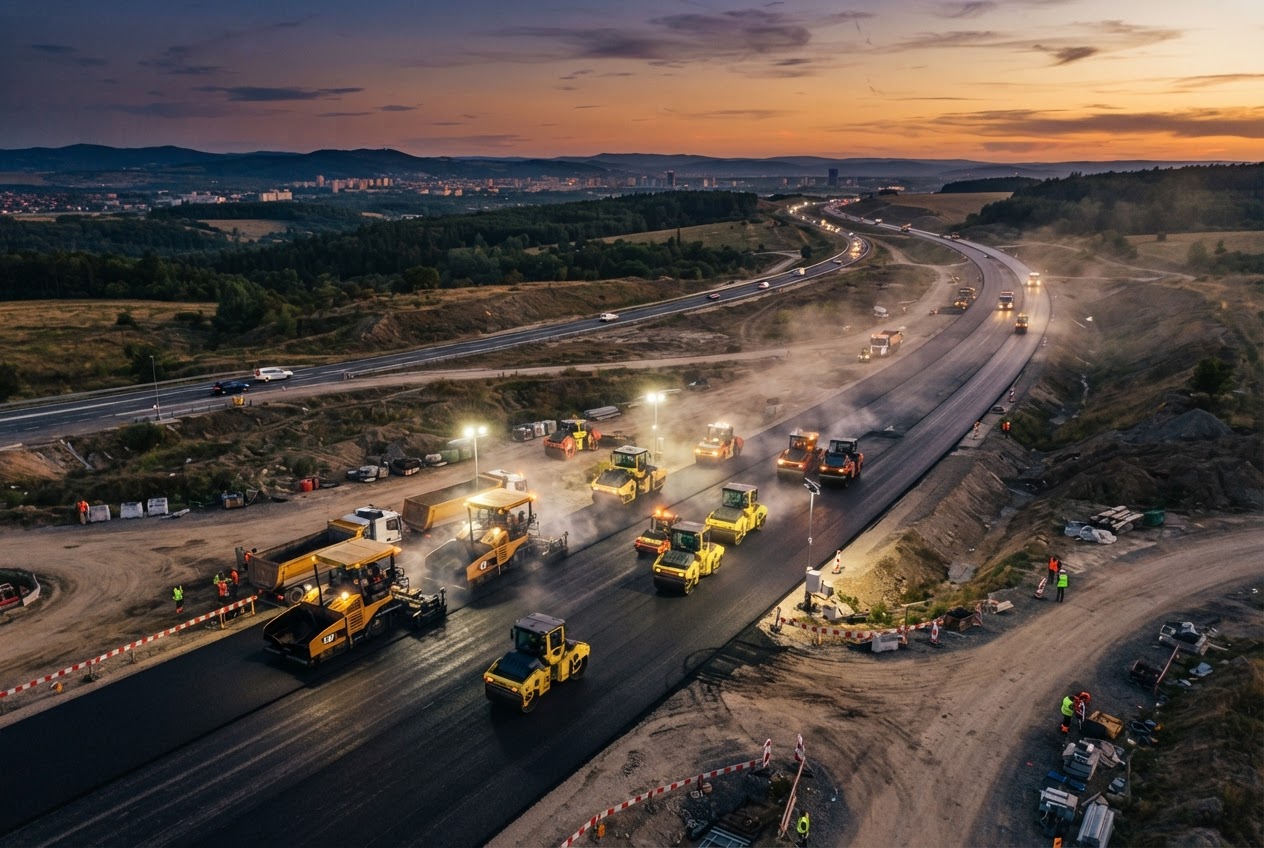

Highway construction site supplied by an IREGE asphalt plant
SITE GALLERY

HIGHWAY CONSTRUCTION SITE SUPPLIED BY AN IREGE ASPHALT PLANT.

IREGE cold aggregate bin system for the asphalt mixing plant
